Retainer

Select View: Details Pictures

BRX1-0005
Holder

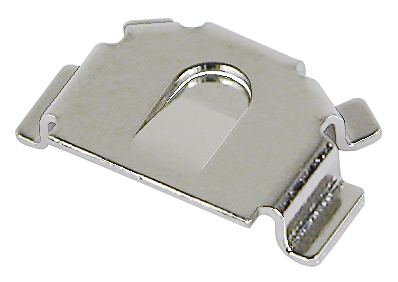

BK-335-SM
335 Retainer with Surface Mount leads

Also Accepts: SR512SW

Can also fit other smaller cells

Height above PCB: 1.55 mm

Lead-free Solder Process Compatible


BHX1-LR44-PC
A76 Holder with PC pins

Also Accepts: LR44

Height above PCB: 6.30 mm

Lead-free Solder Process Compatible


BHX1-LR44-SM
A76 Holder with Surface Mount leads

Also Accepts: LR44

Height above PCB: 6.32 mm

Lead-free Solder Process Compatible


BHX1-1025-PC
CR1025 Holder with PC pins

Also Accepts: BR1025

Height above PCB: 3.60 mm

Lead-free Solder Process Compatible


BHX1-1025-SM
CR1025 Holder with Surface Mount leads

Also Accepts: BR1025

Height above PCB: 3.63 mm

Lead-free Solder Process Compatible

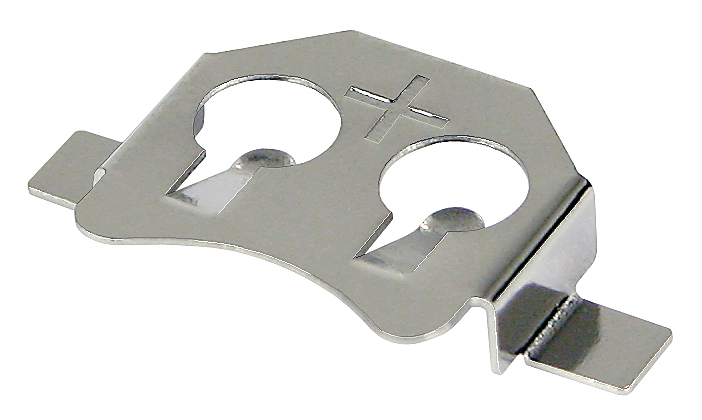

BK-870
CR1025 Retainer with Surface Mount leads

Height above PCB: 3.18 mm

Lead-free Solder Process Compatible


BC-2017
CR1216 Retainer

Lead-free Solder Process Compatible


BK-940
CR1220 Retainer with Surface Mount leads

Also Accepts: CR1220, BR1220, CR1225, BR1225

Lead-free Solder Process Compatible


BK-941
CR1220 Retainer with PC pins

Also Accepts: CR1220, BR1220, CR1225, BR1225

Lead-free Solder Process Compatible

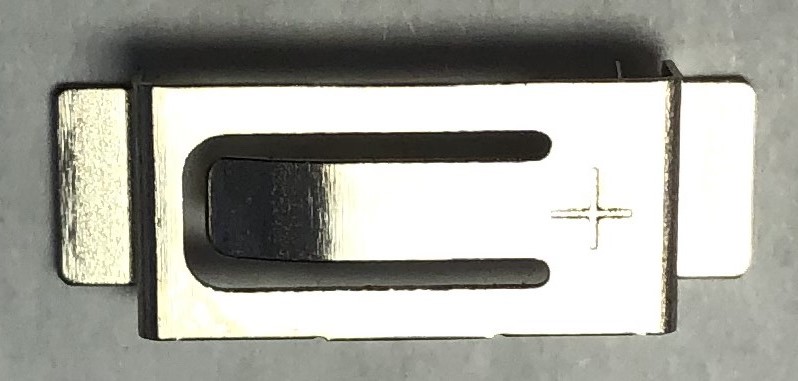

BC-2009-TR
CR1225 Retainer

Height above PCB: 2.92 mm

Lead-free Solder Process Compatible


BHX1-1225-PC
CR1225 Holder with PC pins

Also Accepts: BR1225

Can also fit other smaller cells

Height above PCB: 3.55 mm

Lead-free Solder Process Compatible


BHX1-1225-SM
CR1225 Holder with Surface Mount leads

Also Accepts: BR1225

Height above PCB: 3.55 mm

Lead-free Solder Process Compatible


BK-885
CR1225 Retainer with Surface Mount leads

Also Accepts: CR1216, BR1216, CR1220, BR1220, BR1225

Can also fit other smaller cells

Height above PCB: 3.17 mm

Lead-free Solder Process Compatible


BK-890
CR1225 Retainer with PC pins

Also Accepts: CR1220, BR1220, BR1225

Height above PCB: 3.00 mm

Lead-free Solder Process Compatible


BC-2011
CR1225 Retainer with PC pins

Also Accepts: CR1220, BR1220, CR1225, BR1225

Can also fit other smaller cells

Height above PCB: 2.67 mm

Lead-free Solder Process Compatible


BC-2009
CR1225 Retainer with Surface Mount leads

Also Accepts: BR1225

Can also fit other smaller cells

Height above PCB: 2.92 mm

Lead-free Solder Process Compatible


BK-916-TR
CR1225 Retainer with Surface Mount leads

Also Accepts: CR1216, BR1216, CR1220, BR1220, CR1225, BR1225

Can also fit other smaller cells

Height above PCB: 3.6 mm

Lead-free Solder Process Compatible


BHX1-1620-PC
CR1620 Holder with PC pins

Also Accepts: BR1620

Height above PCB: 3.43 mm

Lead-free Solder Process Compatible


BHX1-1620-SM
CR1620 Holder with Surface Mount leads

Also Accepts: BR1620

Height above PCB: 3.51 mm

Lead-free Solder Process Compatible


BK-960
CR1620 Retainer with Surface Mount leads

Also Accepts: BR1620

Lead-free Solder Process Compatible


BK-961
CR1620 Retainer with PC pins

Lead-free Solder Process Compatible


BHX1-1632-PC
CR1632 Holder with PC pins

Also Accepts: BR1632

Height above PCB: 4.19 mm

Lead-free Solder Process Compatible


BHX1-1632-SM
CR1632 Holder with Surface Mount leads

Also Accepts: 2 CR1616 , 2 CR1616 , BR1632

Height above PCB: 4.32 mm

Lead-free Solder Process Compatible


BK-868
CR1632 Retainer with Surface Mount leads

Also Accepts: BR1632, F3 iButton

Height above PCB: 4.00 mm

Lead-free Solder Process Compatible


BK-869
CR1632 Retainer with PC pins

Also Accepts: BR1632, F3 iButton

Height above PCB: 4.00 mm

Lead-free Solder Process Compatible


BRX1-1632-SM
CR1632 Holder
BK-5067
CR2016 Retainer with Surface Mount leads

Also Accepts: BR2016

Can also fit other smaller cells

Height above PCB: 2.16 mm

Lead-free Solder Process Compatible

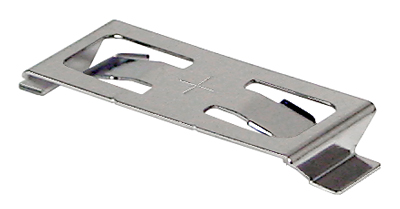

BC-2018-TR
CR2025 Retainer
BHX1-2032-PC
CR2032 Holder with PC pins

Also Accepts: 2 BR2016, 2 CR2016, BR2032

Height above PCB: 4.16 mm

Lead-free Solder Process Compatible


BHX1-2032-SM
CR2032 Holder with Surface Mount leads

Also Accepts: 2 BR2016, 2 CR2016, BR2032

Height above PCB: 4.32 mm

Lead-free Solder Process Compatible


BK-883
CR2032 Retainer with Surface Mount leads

Also Accepts: BR2032

Can also fit other smaller cells

Height above PCB: 3.96 mm

Lead-free Solder Process Compatible


BK-888
CR2032 Retainer with PC pins

Also Accepts: BR2032

Height above PCB: 3.68 mm

Lead-free Solder Process Compatible


BK-912
CR2032 Retainer with Surface Mount leads

Also Accepts: BR2032

Can also fit other smaller cells

Height above PCB: 4.32 mm

Lead-free Solder Process Compatible


BK-913
CR2032 Retainer with PC pins

Also Accepts: BR2032

Height above PCB: 4.27 mm

Lead-free Solder Process Compatible


BC-2003
CR2032 Retainer with Surface Mount leads

Also Accepts: BR2032

Height above PCB: 3.56 mm

Lead-free Solder Process Compatible


BC-2400
CR2032 Retainer with PC pins

Also Accepts: BR2032

Can also fit other smaller cells

Height above PCB: 3.86 mm


BK-912-G
CR2032 Retainer with Surface Mount leads

Also Accepts: BR2032

Can also fit other smaller cells

Height above PCB: 4.32 mm

Lead-free Solder Process Compatible


BK-912-G-TR
CR2032 Retainer with Surface Mount leads

Height above PCB: 4.32 mm

Lead-free Solder Process Compatible


BRX1-2032-SM
CR2032 Holder

Height above PCB: 4.32 mm

Lead-free Solder Process Compatible


BK-915
CR2032 Retainer with PC pins

Also Accepts: BR2032

Height above PCB: 3.56 mm

Lead-free Solder Process Compatible


BC-2003-2-TR
CR2032 Retainer with Surface Mount leads

Also Accepts: CR2025, BR2025, BR2032

Height above PCB: 3.56 mm

Lead-free Solder Process Compatible


BC-2003-G
CR2032 Retainer

Also Accepts: CR2025, BR2025, BR2032

Lead-free Solder Process Compatible


BK-888-G
CR2032 Retainer with PC pins

Also Accepts: CR2016,CR2025,CR2032


BK-913-5-TR
CR2032 Retainer with PC pins

Also Accepts: BR2032

Lead-free Solder Process Compatible


BC-2400-5-TR
CR2032 Retainer
BK-920
CR2032 Retainer with Surface Mount leads

Also Accepts: BR2032

Lead-free Solder Process Compatible


BK-921
CR2032 Retainer with PC pins

Also Accepts: BR2032

Lead-free Solder Process Compatible


BC-2003-FH-TR
CR2032 Retainer with Surface Mount leads

Also Accepts: BR2032

Lead-free Solder Process Compatible


BRX1-2032-PC
CR2032 Holder with PC pins

Also Accepts: BR2032

Lead-free Solder Process Compatible


BRX1-0006
CR2032 Battery Cover
BK-912-FH-4-TR
CR2032 Retainer with Surface Mount leads

Also Accepts: CR2025, BR2025, BR2032

Lead-free Solder Process Compatible


BHX2-2032-PC
2 CR2032 Holder with PC pins

Also Accepts: 4 BR2016, 4 CR2016, 2 BR2032

Height above PCB: 7.4 mm

Lead-free Solder Process Compatible


BHX2-2032-SM
2 CR2032 Holder with Surface Mount leads

Also Accepts: 4 BR2016, 4 CR2016, 2 BR2032

Height above PCB: 7.5 mm

Lead-free Solder Process Compatible


BHX1-2325-PC
CR2325 Holder with PC pins

Also Accepts: BR2325

Height above PCB: 3.58 mm

Lead-free Solder Process Compatible


BHX1-2325-SM
CR2325 Holder with Surface Mount leads

Also Accepts: BR2325

Height above PCB: 3.51 mm

Lead-free Solder Process Compatible


BK-884
CR2330 Retainer with Surface Mount leads

Also Accepts: CR2320, BR2320, CR2325, BR2325, BR2330

Height above PCB: 4.00 mm

Lead-free Solder Process Compatible


BK-889
CR2330 Retainer with PC pins

Also Accepts: CR2320, BR2320, CR2325, BR2325, BR2330

Height above PCB: 3.68 mm

Lead-free Solder Process Compatible

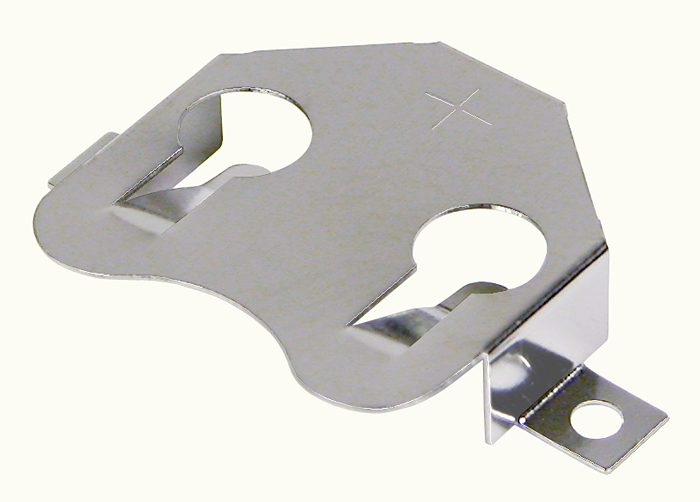

BK-878
CR2354 Retainer with Surface Mount leads

Height above PCB: 6.10 mm

Lead-free Solder Process Compatible

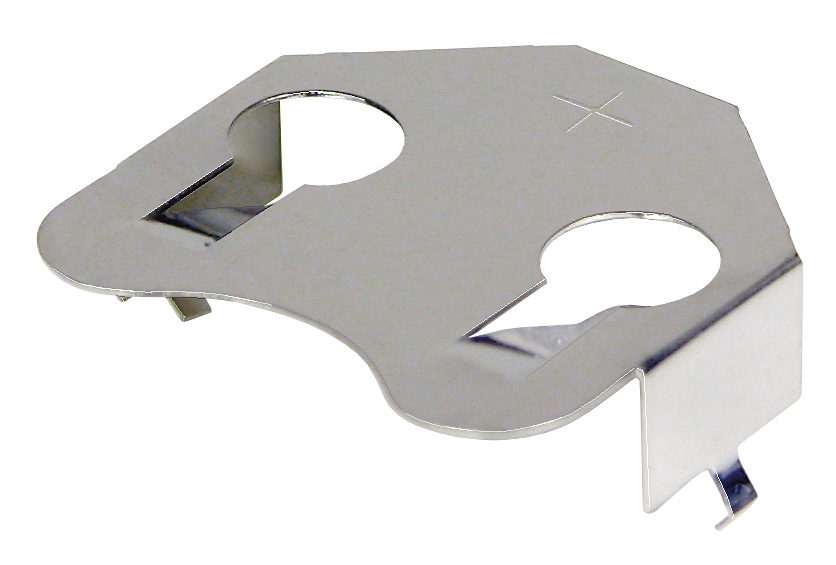

BK-881
CR2354 Retainer with PC pins

Height above PCB: 6.10 mm

Lead-free Solder Process Compatible


BRX1-7500-TR
CR2425 Holder with Surface Mount leads

Lead-free Solder Process Compatible

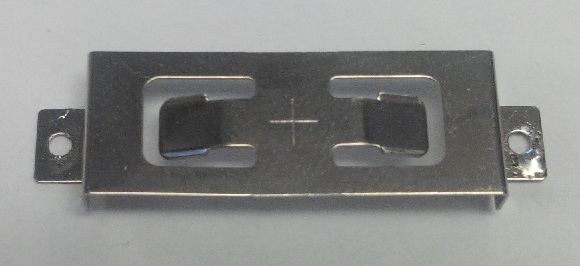

BC-2013
CR2430 Retainer

Height above PCB: 3.68 mm

Lead-free Solder Process Compatible


BHX1-2430-PC
CR2430 Holder with PC pins

Also Accepts: BR2430

Height above PCB: 4.19 mm

Lead-free Solder Process Compatible


BHX1-2430-SM
CR2430 Holder with Surface Mount leads

Also Accepts: BR2430

Height above PCB: 4.18 mm

Lead-free Solder Process Compatible

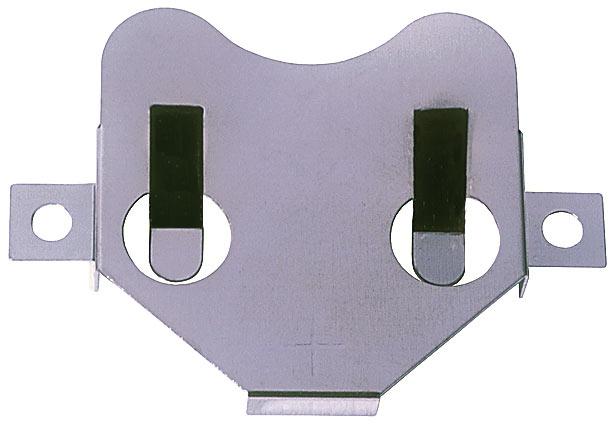

BK-886
CR2430 Retainer with Surface Mount leads

Height above PCB: 3.96 mm

Lead-free Solder Process Compatible

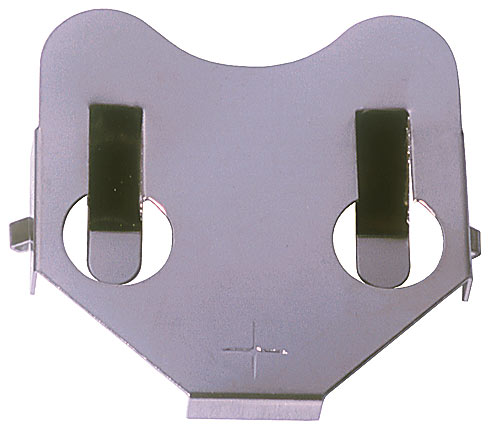

BK-887
CR2430 Retainer with PC pins

Height above PCB: 3.68 mm

Lead-free Solder Process Compatible


BC-2015
CR2430 Retainer

Lead-free Solder Process Compatible


BHX1-2450-PC
CR2450 Holder with PC pins

Also Accepts: BR2450

Height above PCB: 5.87 mm

Lead-free Solder Process Compatible


BHX1-2450-SM
CR2450 Holder with Surface Mount leads

Also Accepts: BR2450

Height above PCB: 5.92 mm

Lead-free Solder Process Compatible

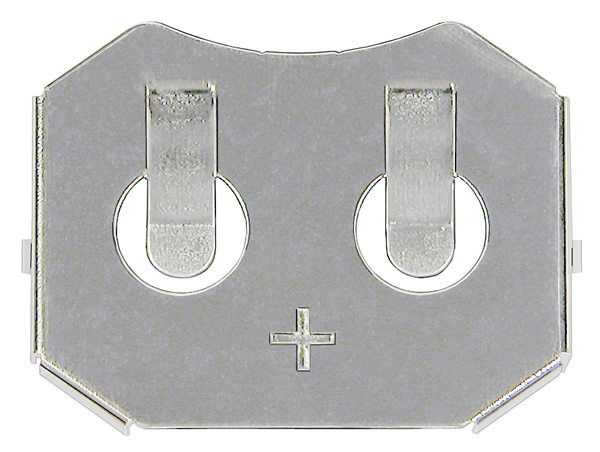

BK-5033
CR2450 Retainer with PC pins

Height above PCB: 6.60 mm

Lead-free Solder Process Compatible

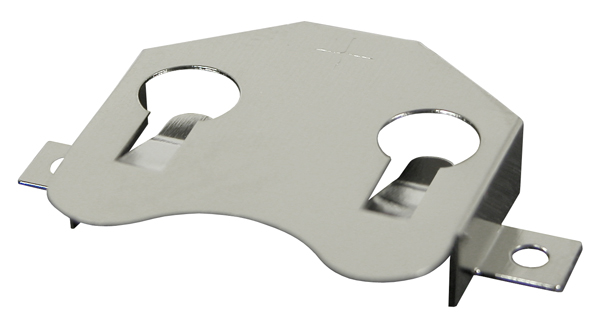

BK-877
CR2450 Retainer with Surface Mount leads

Also Accepts: BR2450

Height above PCB: 5.84 mm

Lead-free Solder Process Compatible

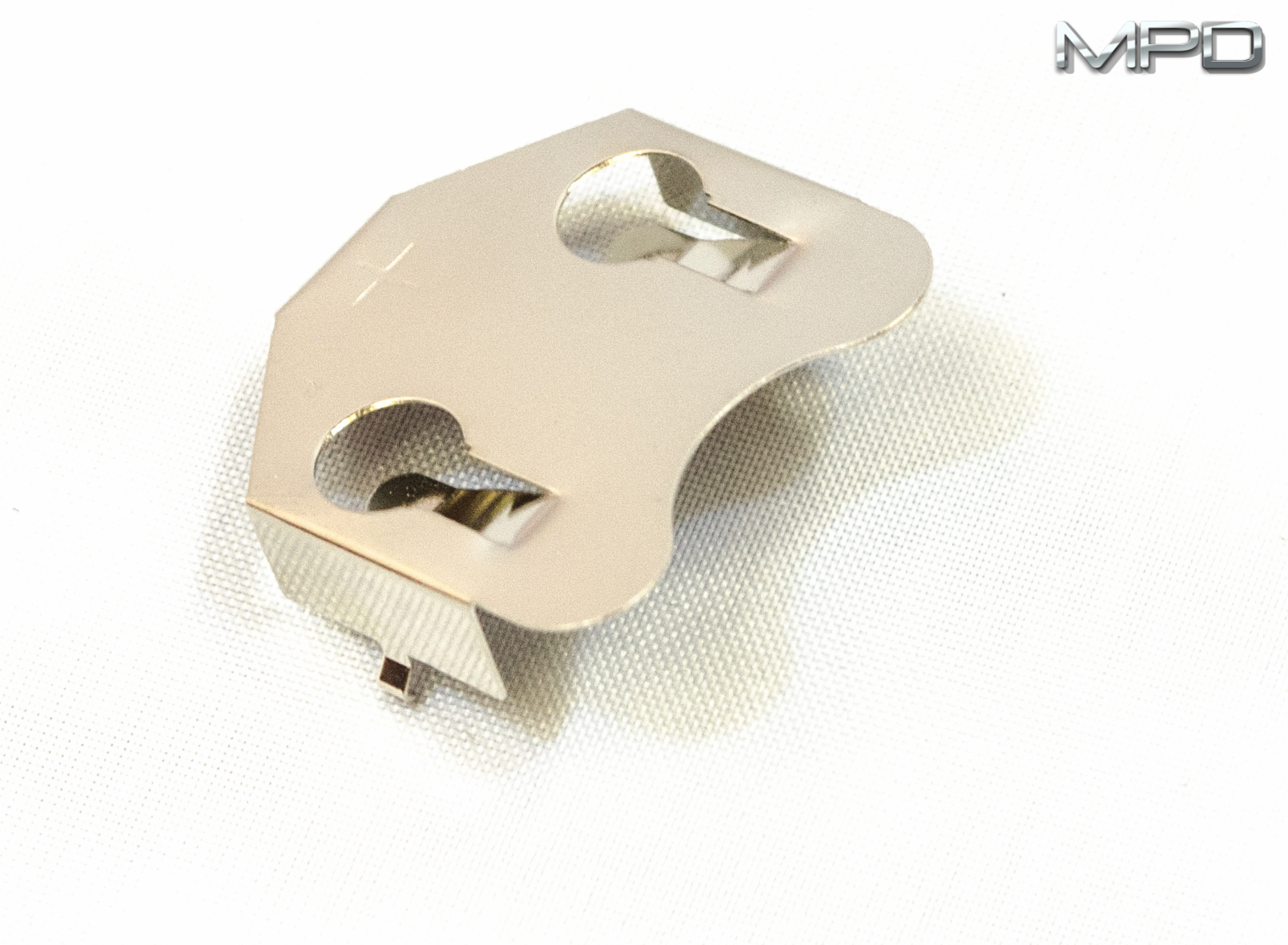

BK-880
CR2450 Retainer with PC pins

Height above PCB: 5.84 mm

Lead-free Solder Process Compatible


BRX1-2450-SM
CR2450 Retainer with Surface Mount leads

Also Accepts: BR2450

Height above PCB: 5.90 mm

Lead-free Solder Process Compatible


BRX1-0002
CR2450 Retainer

Also Accepts: BR2450

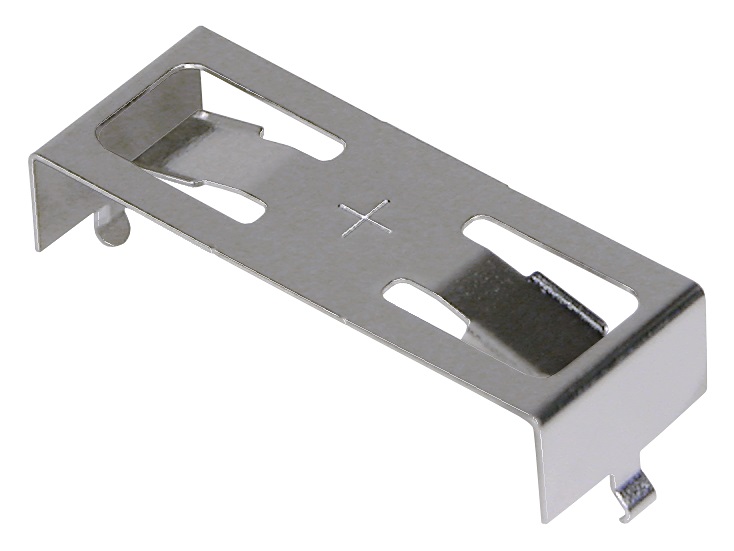

BC-2007
CR2450 Retainer with PC pins

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Height above PCB: 5.33 mm

Lead-free Solder Process Compatible

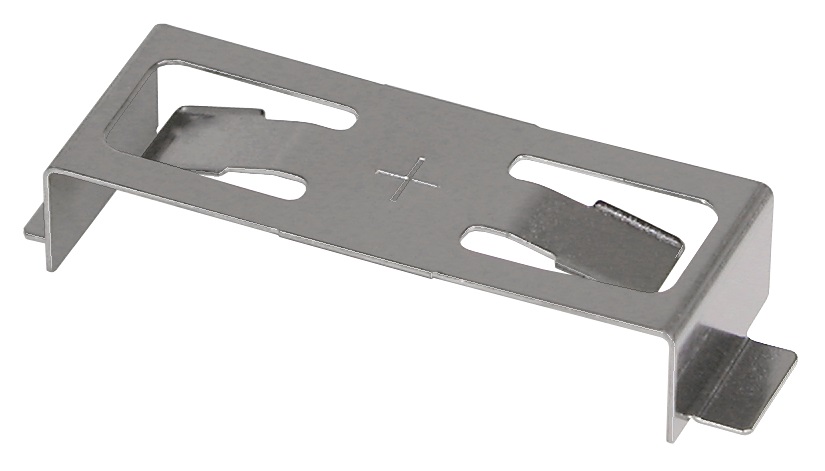

BC-2005
CR2450 Retainer with Surface Mount leads

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Height above PCB: 5.84 mm

Lead-free Solder Process Compatible


BK-877-G
CR2450 Retainer

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Lead-free Solder Process Compatible


BK-950
CR2450 Retainer with Surface Mount leads

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Lead-free Solder Process Compatible


BK-951
CR2450 Retainer with PC pins

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Lead-free Solder Process Compatible


BRX1-2477-SM
CR2477 Retainer with Surface Mount leads

Also Accepts: BR2477

Height above PCB: 8.70 mm

Lead-free Solder Process Compatible


BRX1-0001
CR2477 Retainer

Also Accepts: BR2477


BHX1-F3-SM
F3 iButton Holder with Surface Mount leads

Height above PCB: 4.32 mm

Lead-free Solder Process Compatible


BHX1-5.8-PC
F5 iButton Holder with PC pins

Also Accepts: V80H or CP1654

Height above PCB: 7.47 mm

Lead-free Solder Process Compatible


BHX1-5.8-SM
F5 iButton Holder with Surface Mount leads

Also Accepts: V80H or CP1654

Height above PCB: 7.47 mm

Lead-free Solder Process Compatible


BK-5009
F5 iButton Retainer with Surface Mount leads

Also Accepts: V80H or CP1654

Lead-free Solder Process Compatible


BK-5010
F5 iButton Retainer with PC pins

Also Accepts: V80H or CP1654

Lead-free Solder Process Compatible

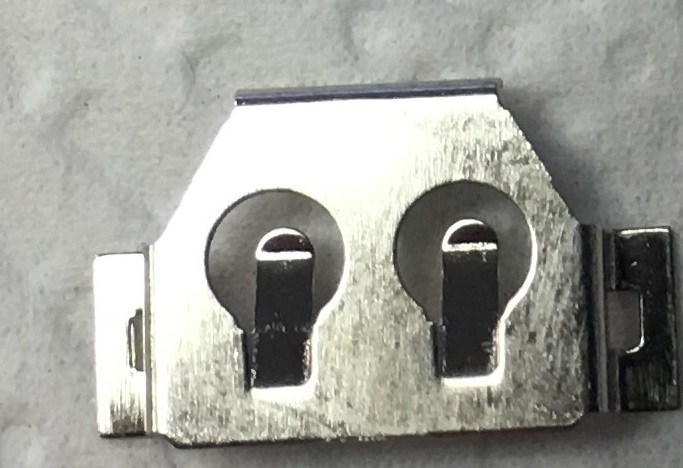

BK-1120-SM-TR
LR1120 Retainer with Surface Mount leads

Also Accepts: 191

Can also fit other smaller cells

Height above PCB: 3.17 mm

Lead-free Solder Process Compatible

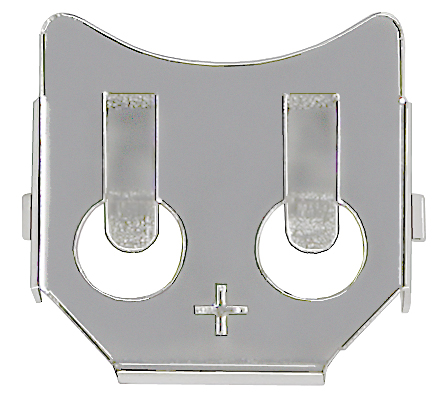

BK-5091
LR44 Retainer with PC pins

Height above PCB: 5.50 mm

Lead-free Solder Process Compatible

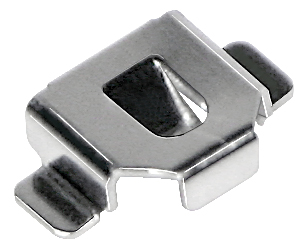

BK-414-TR
ML414 Retainer with Surface Mount leads

Can also fit other smaller cells

Height above PCB: 2.16 mm

Lead-free Solder Process Compatible

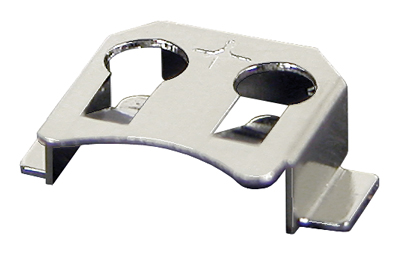

BK-879
SR60 Retainer with Surface Mount leads

Can also fit other smaller cells

Height above PCB: 2.79 mm

Lead-free Solder Process Compatible
