CR2450 Coin Cell Holder

Select View: Details Pictures

Any BR1632 CR1616 191335A76AAAABR1025BR1216BR1220BR1225BR1620BR1632BR2016BR2025BR2032BR2320BR2325BR2330BR2335BR2420BR2430BR2450BR2450,CR2450,DL2450,LIR2450BR2477BR3032CR1025CR1216CR1220CR1225CR1616 CR1620CR1632CR2016CR2016,CR2025,CR2032CR2025CR2032CR2320CR2325CR2330CR2335CR2354CR2420CR2430CR2450CR2477CR3032Coin CellDL1632F3 iButtonF5 iButtonLR1120LR44ML414SR512SWSR60V80H or CP1654iButtonOther Sizes
Any124
Any1 foot cord with lead acid battery clipPC pinsSurface mount
BH1000S
BH1000S
CR2450 Holder with PC pins

Also Accepts: BR2450

Height above PCB: 10.91 mm


BHX1-2450-PC
BHX1-2450-PC
CR2450 Holder with PC pins

Also Accepts: BR2450

Height above PCB: 5.87 mm

Lead-free Solder Process Compatible


BHX1-2450-SM
BHX1-2450-SM
CR2450 Holder with Surface Mount leads

Also Accepts: BR2450

Height above PCB: 5.92 mm

Lead-free Solder Process Compatible


BK-5033
BK-5033
CR2450 Retainer with PC pins

Height above PCB: 6.60 mm

Lead-free Solder Process Compatible


BK-877
BK-877
CR2450 Retainer with Surface Mount leads

Also Accepts: BR2450

Height above PCB: 5.84 mm

Lead-free Solder Process Compatible


BK-880
BK-880
CR2450 Retainer with PC pins

Height above PCB: 5.84 mm

Lead-free Solder Process Compatible


BS-2450
BS-2450
CR2450 Holder with PC pins

Height above PCB: 9.90 mm

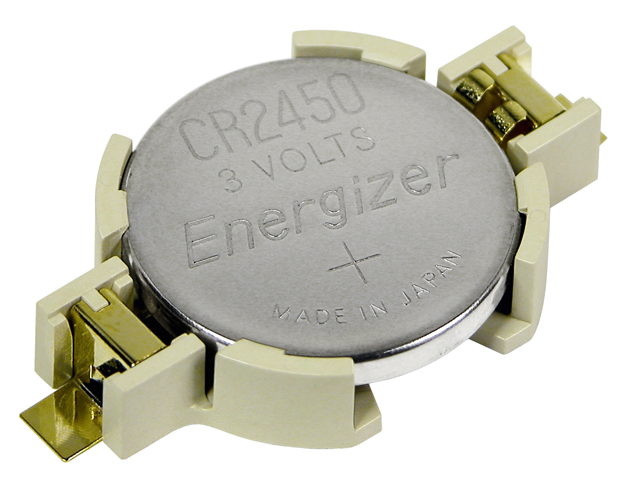

BU2450SM-JJ-GTR
BU2450SM-JJ-GTR
CR2450 Holder with Surface Mount leads

Height above PCB: 7.00 mm

Lead-free Solder Process Compatible


BRX1-2450-SM
BRX1-2450-SM
CR2450 Retainer with Surface Mount leads

Also Accepts: BR2450

Height above PCB: 5.90 mm

Lead-free Solder Process Compatible


BRX1-0002
BRX1-0002
CR2450 Retainer

Also Accepts: BR2450


BC-2007
BC-2007
CR2450 Retainer with PC pins

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Height above PCB: 5.33 mm

Lead-free Solder Process Compatible


BC-2005
BC-2005
CR2450 Retainer with Surface Mount leads

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Height above PCB: 5.84 mm

Lead-free Solder Process Compatible

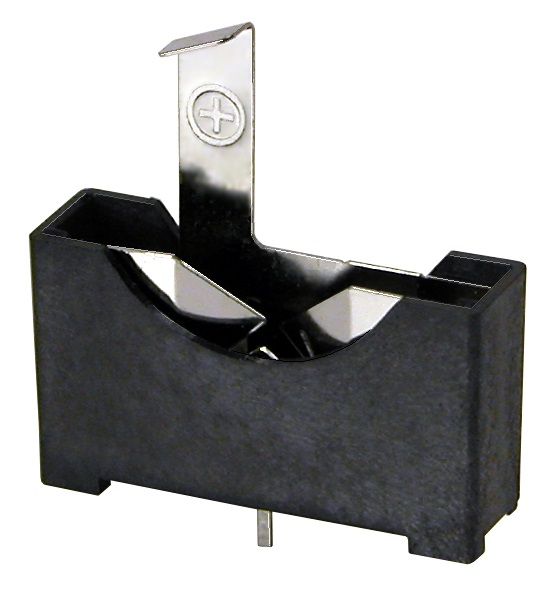

BV-2450-PC
BV-2450-PC
CR2450 Holder
BH2450T-C
BH2450T-C
CR2450 Holder

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Height above PCB: 7.55 mm

Lead-free Solder Process Compatible


BK-877-G
BK-877-G
CR2450 Retainer

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Lead-free Solder Process Compatible


BK-950
BK-950
CR2450 Retainer with Surface Mount leads

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Lead-free Solder Process Compatible


BK-951
BK-951
CR2450 Retainer with PC pins

Also Accepts: BR2450,CR2450,DL2450,LIR2450

Lead-free Solder Process Compatible
